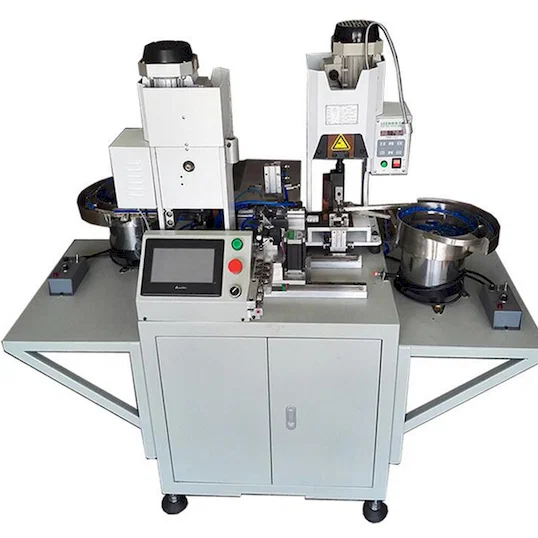

Automatic cable stripping crimping and twisting mchine
Automatic cable stripping crimping and twisting mchine Automatic cable stripping crimping and twisting mchine Automatic cable stripping crimping and twisting mchine
  • Automatic cable stripping crimping and twisting mchine

  • item No :
  • Automatic cable stripping crimping and twisting mchine
  • Inquiry now

Detailed description



Automatic cable stripping crimping and twisting mchine

Features;

This automatic crimping machine is a fully automatic cable processing machine to process wire from cutting,

stripping, crimping and twisting complete at once. it suitable for processing all kinds of electric wries from

AWG14#~AWG28#(can be customized), and crimping reel type terminals like insulated trminals or non-insulated

terminals. the crimping die is made according to your terminals, different terminals can be pressed by this machine

just replace the crimping die,changeover the crimping die is very quickly.



Advantages:

1) from feeding cable, cutting,stripping, crimping and twisting automatically.

2)Available wire range from AWG 14#~AWG 28# with fast speed and accuracy performance.

3)Available for crimping all kinds of chain type terminals.

4)change the cirmping die is very quick and convenient within 3minutes.

5)Can be equipped with conveyor for processing long wire.

Function

cutting, stripping,crimping and twisting

Available wire size

AWG14~AWG28( can be made as your request)

Cutting length

45mm-9999.9mm

Stripping length

0-12mm

Cutting accuracy

0.5mm+cutting length*0.2%

Capacity

4000-5000pcs/h

Crimping force

2T

Power supply

220V 50HZ/60HZ

Air pressure

0.5-0.7mPa
