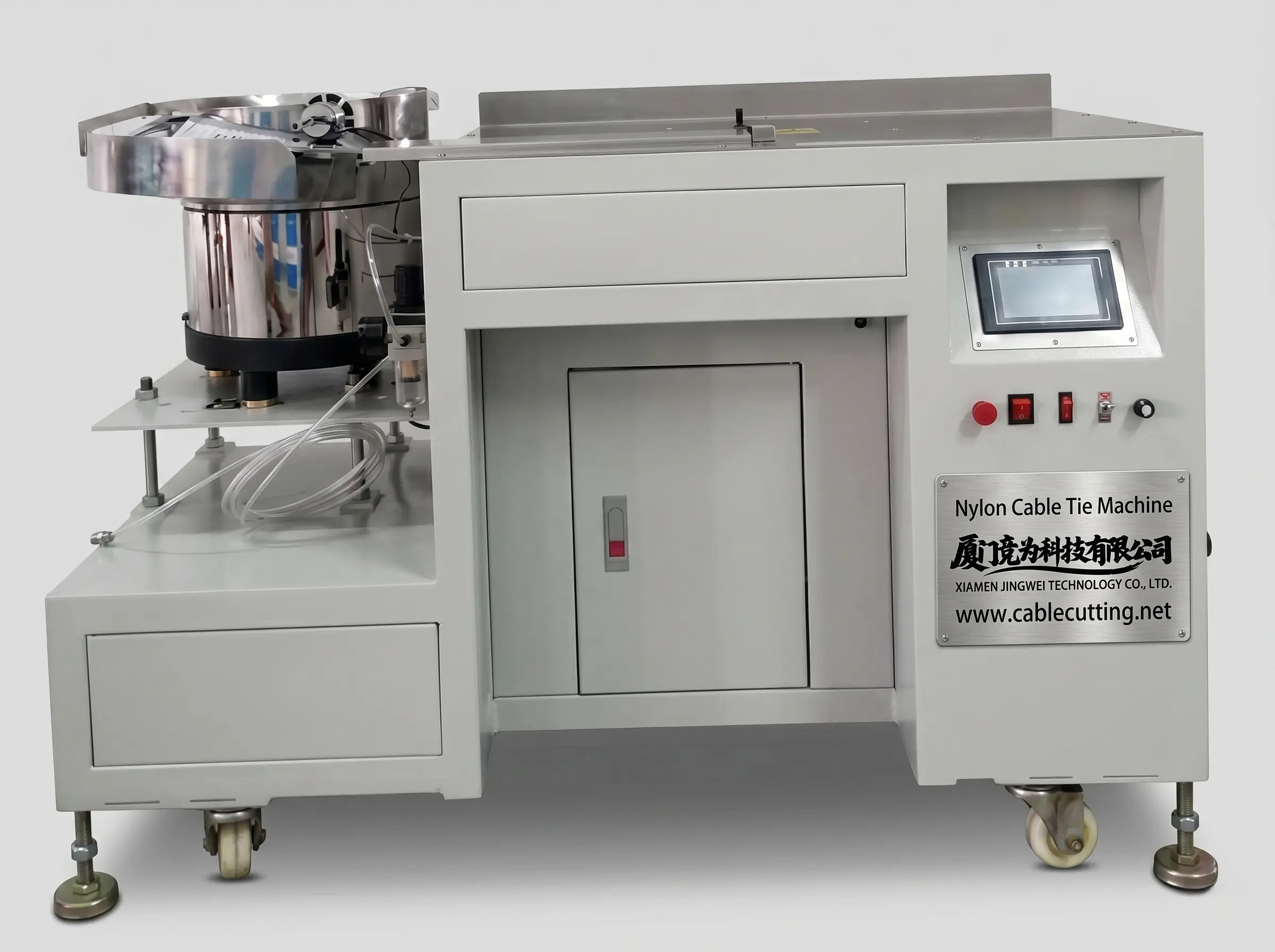

Nylon Cable Tie Machine WPM-80-160
Nylon Cable Tie Machine WPM-80-160 Thumb

Nylon Cable Tie Machine WPM-80-160

  • Model No: WPM-80-160

  • Cable Making Machine, Cable Tie Tying Machine, Cable Tie Making Machine
    Tape Shear residual length 0-2(mm) The length can be adjusted manually
    Maximum strapping diameter:
    Maximum tying diameter:80mm Tying Ф10MM
    100mm Tying Ф16MM
    120mm Tying Ф20MM
    150mm Tying Ф30MM
    160mm Tying Ф32MM
    200MM Tying Ф34MM
    nylon cable width 2.5-4.8MM
    Max strapping force 15(N)
    Application Strapping wire harness
    Power Supply AC220V; 50HZ /60HZ 750W
    Strapping ability 1500-1800PCS
    weight 125KG-200(kg)
    size 1200*550*780MM

  • Inquiry now

Detailed description

WPM-80-160 Semi-Automatic Cable Tie Machine - Adaptable and Efficient Bundling for Varied Cable Tie Designs

Elevate Your Cable Harness Production with the WPM-80-160 Semi-Automatic Cable Tie Machine: Flexible, Dependable, and Cost-Optimized Cable Bundling

Introduction:

Cable harness manufacturers often encounter the challenge of working with a diverse range of cable tie types, some of which are not easily handled by standard vibration plate feeding systems. Introducing the WPM-80-160 Semi-Automatic Cable Tie Machine, a versatile and practical solution designed to address this specific need. This advanced machine, also known as a Cable Making Machine, Cable Tie Tying Machine, or Plastic Zip Binding Nylon Cable Tie machine, offers a semi-automated approach to cable bundling, providing efficiency, reliability, and cost-effectiveness, even when working with challenging cable tie designs. For facilities seeking a flexible and dependable solution to enhance cable harness production across a variety of tie types, the WPM-80-160 is an ideal investment.

Key Features and Benefits: Flexibility, Efficiency, and Value-Driven Automation

The WPM-80-160 Semi-Automatic Cable Tie Machine is thoughtfully designed to provide optimal performance and user value, especially when handling a diverse range of cable tie styles:

  • Versatile Design for Non-Vibration Plate Compatible Cable Ties: Overcome limitations in cable tie feeding with a machine engineered for adaptability. The WPM-80-160 is specifically designed to effectively handle cable ties that are not suitable for traditional vibration plate feeding systems. This broadened compatibility expands your material choices and ensures you can efficiently bundle a wider spectrum of cable harness designs.

  • Accommodates Ribbon Widths from 2.5-4.8MM for Varied Tie Specifications: Adapt to different cable bundling requirements with a machine designed for a range of tie sizes. The WPM-80-160 is engineered to work seamlessly with nylon cable ties having a ribbon width range of 2.5-4.8MM. This flexibility allows you to utilize different tie strengths and dimensions, ensuring the right tie for each harness application.

  • Semi-Automatic Operation for Efficient Strapping: 600-900 PCS/H Throughput: Strike the perfect balance between automation and manual control with semi-automatic operation. The WPM-80-160 delivers a solid strapping ability of 600-900 pieces per hour. This throughput significantly improves production speed compared to purely manual methods, while maintaining operator oversight and adaptability for specific bundling tasks.

  • Compact, Fast, Dependable, and Economical Cable Bundling Solution: Optimize your operations with a machine designed for practicality and value. The WPM-80-160 is engineered to be small, quick, reliable, and cost-effective, offering a smart and efficient approach to cable harness production. Its compact size saves valuable floor space, its speed enhances productivity, its reliability minimizes downtime, and its economical design ensures a strong return on investment for your facility.

  • Essential for Streamlined Cable Harness Production: Enhance your cable harness manufacturing capabilities with a key piece of equipment. The WPM-80-160 is not just an optional add-on, it’s a must-have for cable harness production facilities seeking to optimize their workflows, boost efficiency, and maintain consistent quality when working with a diverse range of cable tie designs.

  • Customizable to Your Unique Product and Application Demands: Tailor the machine to perfectly match your specific production needs. The WPM-80-160 is designed to be customized to your product based on the type and cable tie length, and your specific application requirements. This customization ensures the machine is precisely optimized for your unique cable harness designs and production workflows, maximizing efficiency and effectiveness for your specific product lines.

  • Automated Feeding, Strapping, and Cutting for Simplified Workflow: Experience a streamlined and simplified cable bundling process with automated core functions. The WPM-80-160 automates the key steps of cable tie application, performing automatic feeding, strapping, and cutting in a smooth and efficient sequence. This automation reduces manual labor, minimizes operator fatigue, and ensures consistent, high-quality bundling results with reduced operator intervention.

  • Adjustable Feed Speed via Pneumatic Actuation for Material Optimization: Fine-tune the machine's performance for different materials and scenarios. The pneumatic actuation of the feed roller allows for adjustable feed speed. This control enables you to optimize the machine's operation for various cable tie types and bundling complexities, ensuring smooth and efficient material handling and preventing potential feeding issues.

  • User-Friendly PLC Control and Touch Screen Interface for Intuitive Operation: Operate and manage the machine with ease using the intuitive PLC Control and touch screen interface. This modern control system provides a user-friendly platform for setting parameters, monitoring performance, and managing machine functions. The touch screen interface simplifies operator interaction, reduces training time, and maximizes efficiency in controlling the cable bundling process.

Functions and Features Summarized:

  • Handles Cable Ties Not Suitable for Vibration Plates

  • Ribbon Width Compatibility: 2.5-4.8MM

  • Semi-Automatic Strapping with 600-900 PCS/H Ability

  • Small Footprint, Quick Operation, Reliable Performance

  • Cost-Effective Automation Solution

  • Customizable to Specific Product and Application Needs

  • Automatic Feeding, Strapping, and Cutting

  • Adjustable Feed Speed via Pneumatic Actuation

  • PLC Control with User-Friendly Touch Screen Interface

Technical Specifications:

Feature Specification
Ribbon Width (Cable Tie) 2.5-4.8MM
Strapping Ability 600-900 PCS/H
Power 0.75 (kW, presumed unit)
Actuation Pneumatic Feed Roller
Control System PLC Control, Touch Screen
Operation Semi-Automatic Feeding, Strapping, Cutting
Customization Based on Product Type, Cable Tie Length, Application Requirements

Applicable Industries:

The WPM-80-200 Semi-Automatic Cable Tie Machine is well-suited for diverse industries where cable harness assembly is a key process, including:

  • Cable Harness Manufacturing: Optimizing production lines handling a broad range of cable tie types, including those challenging for vibration plate feeders.

  • Electronics Assembly: Efficiently bundling and securing wires and cables in electronic devices, accommodating various cable tie designs.

  • Appliance Manufacturing: Speeding up cable bundling in the production of household and industrial appliances, handling diverse tie types.

  • Telecommunications Equipment Manufacturing: Streamlining cable management in telecom equipment production with flexible tie compatibility.

  • Any industry requiring adaptable, efficient, and semi-automatic cable tie application for a wider range of cable tie designs.

Conclusion:

The WPM-80-200 Semi-Automatic Cable Tie Machine is a valuable investment for cable harness production facilities seeking a versatile and cost-effective solution for diverse cable tie bundling needs. Its adaptability to various cable tie types, combined with its efficient semi-automatic operation, customization options, and user-friendly controls, makes it an indispensable tool for enhancing productivity and maintaining high-quality cable harness assembly. Upgrade your production line today and experience the benefits of this adaptable and reliable cable tie machine.


Tape Shear residual length

0-2(mm)  The length can be adjusted manually

Maximum strapping diameter

Maximum tying diameter 80mm

80mm  Tying  Ф10MM
100mm Tying Ф16MM
120mm Tying Ф20MM
150mm Tying Ф30MM

160mm Tying Ф32MM

200MM Tying Ф34MM

nylon cable width

2.5-4.8MM

Max strapping force

15(N)

Application

Strapping wire harness

Power Supply

AC220V; 50HZ /60HZ  750W

Strapping ability

1500-1800PCS

weight

125KG-200(kg)

size

1200*550*780MM

  Plastic Zip Binding Nylon Cable Tie machine Apply for:

this machine is used for  tying all kinds of wires, including AC wire, DC wire, PC wire, USB wire, PS/2 keyboard mouse line, and so on
