Detailed description

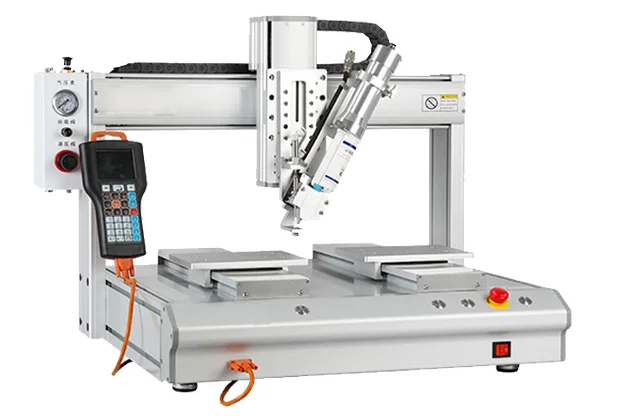

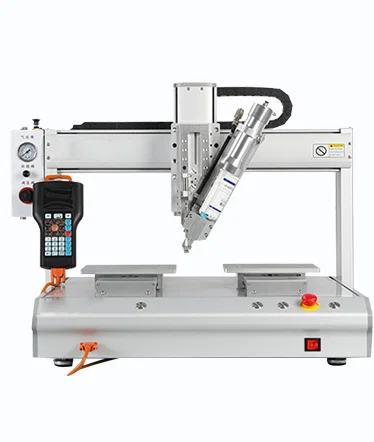

automatic AB Glue Dispensing machine 3-axis Dispenser control system machine
1. can replace manual operation with high-precision programming of dots, strips, arcs, and patterns on different planes or curved surfaces.
2. Suitable for positioning different jobs.
3. It supports graphics imported from computers, PLT files, TCF files, and G code files.
4. Suitable for glue: Anaerobic, Coatings, Cyanoacrylates, White Glues, Epoxy Resin, Greases, Sealants, Silicones, Solder/Braze
Pastes, Thermal Grease, Conductive Adhesive, Red Gum, UV Glue, AB Glue, Polyurethane Resin Adhesive, etc.
This equipment is suitable for high efficiency, high running precision, and the production process of dispensing. Generally suitable for products with sensors, relays, power adapters, electronic toys, sounders, electronic components, household
appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button
products, battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts package coating, quantitative liquid filling, chip bonding, automotive mechanical parts coating, mechanical seals, etc.
|
WPM-5331
|
Working size
|
X
|
500
|
Y1
|
300
|
Y2
|
300
|
Z
|
100
|
Max Load Y/Y/Z
|
10kg/5kg
|
Speed X/Y/Z
|
800/350 (mm/sec)
|
Repetitive positioning Accuracy
|
±0.02mm
|
Storage capacity
|
Total 100 group, each group 4000points
|
Programming method
|
Teach pendant
|
body material
|
sheet metal
|
Mode of transmission
|
Synchronous belt
|
