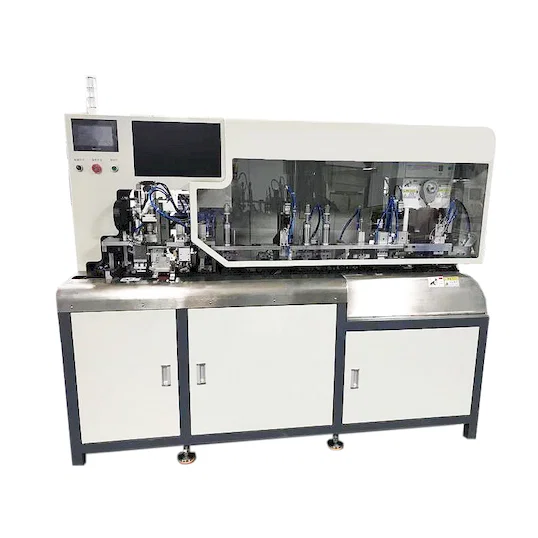

Full Automatic Us Power Cord Making Machine, Eu Plug Power Cord Cable Making Machine, Power Cable Cutting Stripping Crimping Machine
It is a fully automatic power cord crimping machine that can automatically complete the processes of wire feeding, wire cutting, stripping, polarity recognition, terminal crimping, and defect detection.
Product details
Applicable plug insert EU, UK, US, French, Indian plug, etc. customized.
Efficiency 900-1500pcs/H
Power 6.5KW
Voltage AC220V
Air pressure 0.5-0.7Mpa
Machine size About 2*0.9*1.8m
Including Cable feeder, plug terminal feeder, main machine
Stripping length Head 20-50mm, tail 30-400mm
Standard cutting length 600-1500mm, customized
Features:
1, High efficiency: It can save 4-6 workers and improve production efficiency.
2, Accuracy: This machine uses the servo system to control the process of stripping the outer skin, stripping the core wire,
polarity identification, and drag chain drive, and the equipment has high precision.
3, Simple: Fully automated production, fast speed, simple operation, and convenient maintenance.
4, Security: Intelligent security protection.
5, Process flow: automatic wire feeding → end stripping → front outer skin-stripping → brush powder → separate wires → shaping → stripping inner wires → crimping terminal → taking out the product.
Our crimping machines:
(1) Semi-auto super mute crimping machine: 1.5T, 2T, 3T, 4T, 6T, 8T.
(2) Servo motor drive crimping machine: suitable drive crimping machine: suitable for enameled wire splicing.
(3) Servo motor drive hexagon terminal crimping machine 15T.
(4) Hydraulic hexagon/B-shape/point press terminal crimping machine 20T.
(5) Auto-feeding loose terminal crimping machine, with a vibrator.
(6) Full auto single/double end wire cutting stripping crimping machine.
(7) Full auto one-side crimping, one-side twisting tinning machine.
(8) Full auto-cutting stripping crimping housing insertion machine.
(9) For further information, please contact us.
