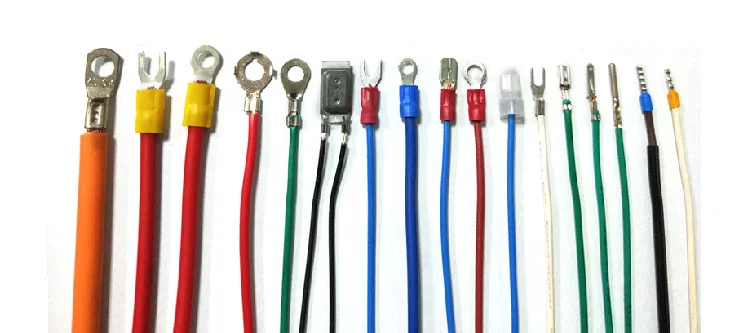

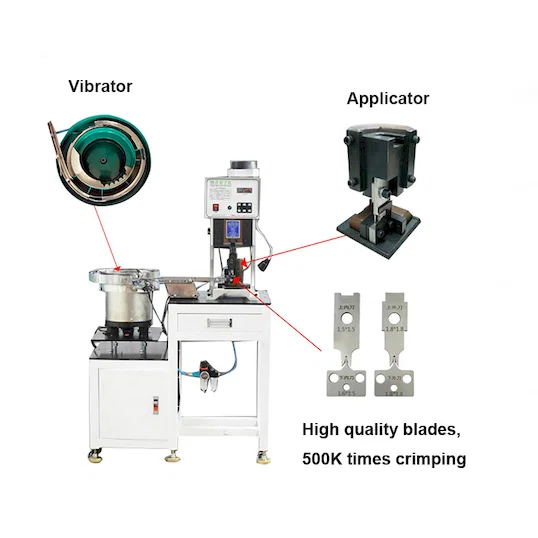

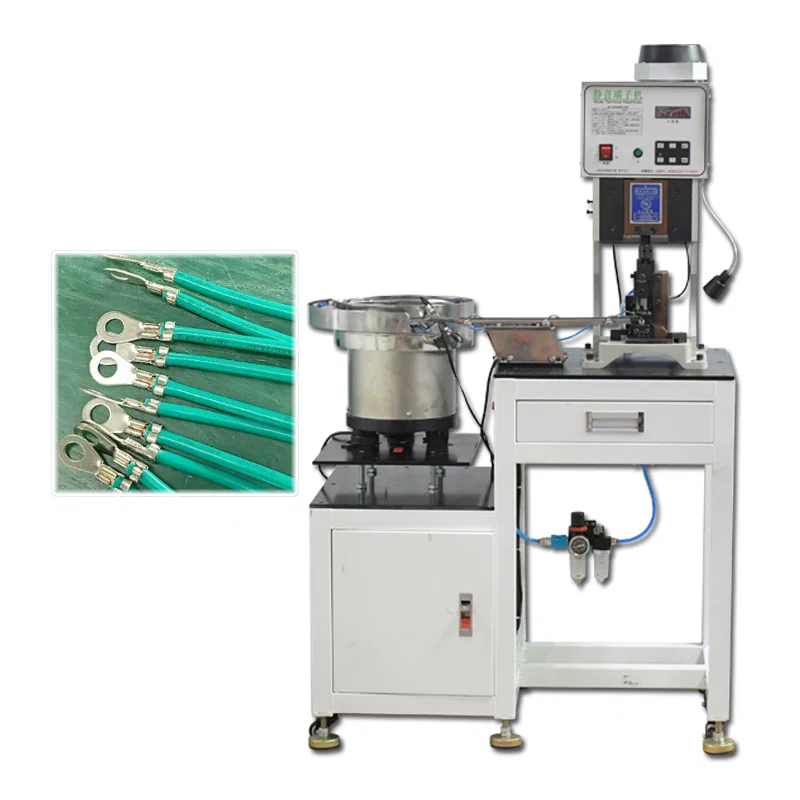

This is a semi-automatic cable connector crimping machine. It is suitable for crimping loose piece terminals with vibration plate feeding. The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages.
Manual operation part
Manually put the terminal into the vibration plate
Manually put the wire into the terminal to be crimped
Machine running part

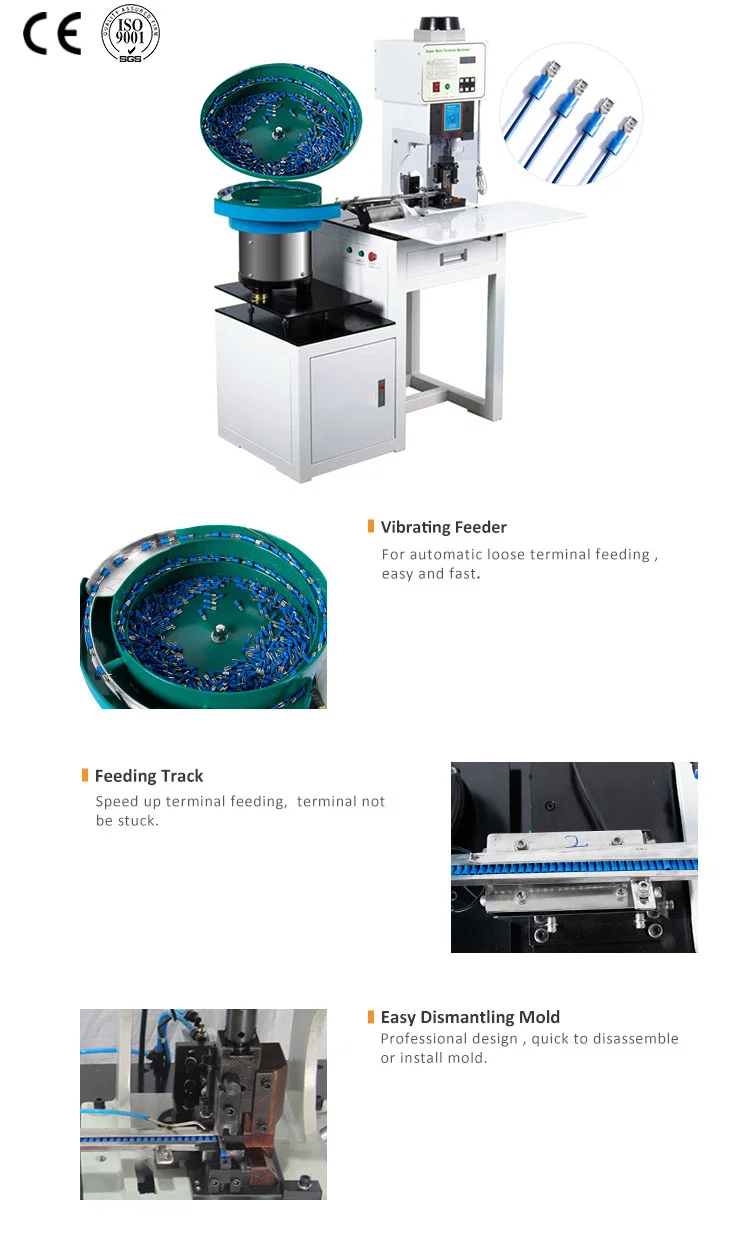

Automatically arrange and feed the terminals
Automatically feed the terminal into the designated die
(The feeding speed of regular terminals is 60~70 pcs per minute. The speed is 3000-4000 pcs per hour. Note: special terminals are excluded)When ready, start the crimp switch, and the pressing is completed automatically.
Consumed Power Motor: 250W, Working lamp: 60W,
vibrating plate: 120W
Crimping capacity 2.0T
Stroke of the slide block 30MM
Crimping times 120PCS/MIN
Closing height 126MM
Adjust the closing height of 10MM
