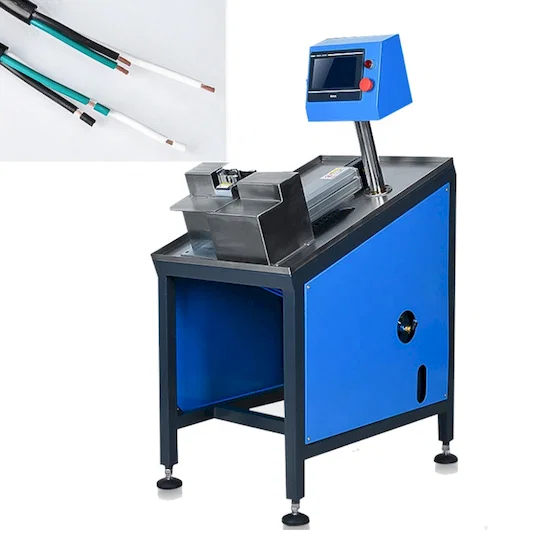

Multi-core sheathed cable inner core long and short wire cut stripping
Multi-core sheathed cable inner core long and short wire cut stripping
  • Multi-core sheathed cable inner core long and short wire cut stripping

  • Model No : WPM-25-290

  • Wire Stripping Machine, Multi-core Sheathed Wire Stripping Machine, Long And Short Wire Stripping Machine
    size 900*500*1360mm
    Stripping length 25-290mm
    power supply AC 220V 50HZ
    Air pressure 5-7KG
    Applicable wire core area 0.5-3.0mm2
    Cut length size 20-290mm

  • Inquiry now
Detailed description Multi-core sheathed cable inner core long and short wire cut stripping machine WPM-25-290


The multi-core wire cutting long and short wire stripping automatic machine clamps the outer skin by the cylinder, and the servo motor drives the stripping knife to the left and right feed knife, retracting the knife. Another set of servo motors drives the screw slide rail module to move up and down to realize the peeling and cutting. The integrated multifunctional automatic machine has the characteristics of saving personnel and improving efficiency; the product quality is stable and the equipment is easy to operate and adjust.

1. Clip the outer skin system
Including pay-off auxiliary function, anti-pinch function

 2. Stripping system
This system is mainly responsible for cutting the core wire according to the requirements, stripping, retaining the wire skin,
cutting the length, dividing the wire (optional), (different wire gauges, different requirements, and possibly changing the blade)

3. Electric control system
The main function is to adjust the servo motor for size adjustment according to the stripping requirements of the wire.
size 900*500*1360mm
Stripping length 25-290mm
power supply AC 220V 50HZ
Air pressure 5-7KG
Applicable wire core area 0.5-3.0mm2
Cut length size 20-290mm
Wire Stripping Machine, Multi-core Sheathed Wire Stripping Machine, Long And Short Wire Stripping Machine Processing result of Wire Stripping Machine, Multi-core Sheathed Wire Stripping Machine, Long And Short Wire Stripping Machine
