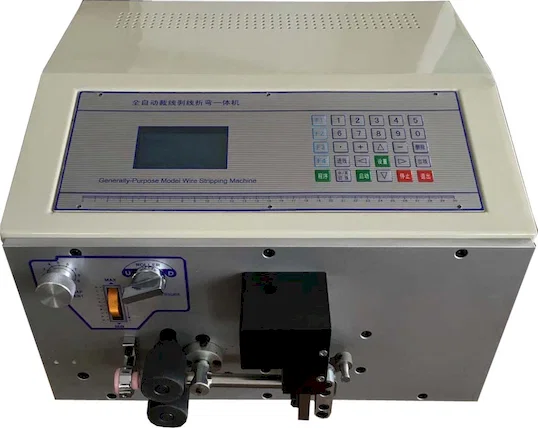

Wire stripping cutting and bending machine WPM-09ZWJ
Wire stripping cutting and bending machine WPM-09ZWJ
  • Wire stripping cutting and bending machine WPM-09ZWJ

  • Model No : WPM-09ZWJ

  • Wire stripping cutting and bending machine WPM-09ZWJ 2.5-16mm2,Jacket Wire Cutting Stripping Bending Machine, Single Core Cable Bending Machine, Bending Wire Machine Cutting Machine
    Wire cross-section: 2.5-16mm2
    Conduit diameter: 10mm
    Stripping length: Head side 0-20mm
    Tail side 0-20mm
    Cutting length: 1-100000mm

  • Inquiry now
Detailed description

  Wire stripping cutting and bending machine, Jacket Wire Cutting Stripping Bending Machine, Single Core Cable Bending Machine, Bending Wire Machine Cutting Machine
Wire stripping cutting and bending machine WPM-09ZWJ 2.5-16mm2
Wire cross-section: 2.5-16mm2
Conduit diameter: 10mm
Stripping length: Head side 0-20mm
Tail side 0-20mm
Cutting length: 1-100000mm

Features:
Automatic Full Computer Wire Stripping Machine
Adopt the advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.

Apply for:
Widely used in the electronics industry, the city ahs, electrical appliances, motors, lamps, toys,
and other various products of wire processing.
Optimal stripped wire PVC /Teflon /silica gel line /. Glass fiber, etc.

Specification:
Available Wire Cross-Section Range:2.5-16mm2
Conduit Diameter:¢10mm
Cutting Length:1~100000mm
Cutting Tolerance: ±(0.002×L)  (L=Cutting Length)
Stripping Length: Head 0~20mm, Tail 0~20mm
Middle Stripping Section: /
Speed:  1000-2000pcs/h
Display Way: English LCD
Drive Mode: 2 Drives
Blade Material: Hard tungsten steel
Bending: U-shaped, Z  shapes, clockwise, counterclockwise,
Adjustable bending angle,30,45,60,90 degrees
Power Supply: 220V/50Hz   110V/60Hz
Power Rating: 650W
Measurement:390X350X255mm
Weight:33kg






FAQ:

1 Price terms

The price is based on EXW/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you the CFR price or CIF price for reference.

2. What is your main market?

There are kinds of different clients from Asia, Africa, America, and Europe market.

3 . Could provide a professional solution based on our product?

We always promote suitable solutions based on products and satisfy clients with cost-down requirements.

4 Can we provide the sample for testing?

Yes, It will be a pleasure if u provide us with the sample for testing.

5 Do u test all goods before delivery?

Yes,100% test before shipment.

™ products are tested and guaranteed to keep in good quality with one year warranty excluding consumable parts.
If any main parts have quality problems, we will provide new parts and send them to you to change at once with detailed technical support and video illustration, or our experience engineer help to solve them. All problems and questions can be responded to within 24 hours after receiving email/phone/other chatting tools.
