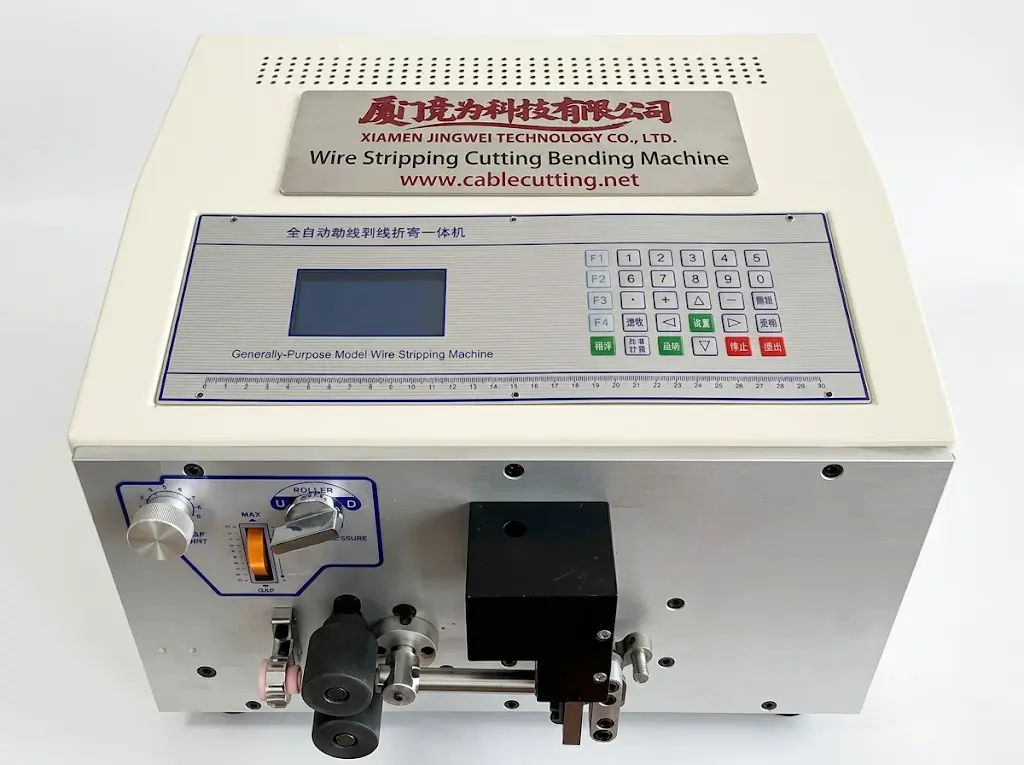

Automatic Wire Stripping Cutting Bending Machine 2.5-16mm² WPM-09ZWJ

Name: Automatic Wire Stripping Cutting Bending Machine 2.5-16mm...
Brand: Automatic Cable Stripping Equipment
SKU: WPM-09ZWJ
Availability: InStock
Rating: 5 (1 reviews)

Wire stripping cutting and bending machine, Jacket Wire Cutting Stripping Bending Machine, Single Core Cable Bending Machine, Bending Wire Machine Cutting Machine
Wire stripping cutting and bending machine WPM-09ZWJ 2.5-16mm2
Wire cross-section: 2.5-16mm2
Conduit diameter: 10mm
Stripping length: Head side 0-20mm
Tail side 0-20mm
Cutting length: 1-100000mm

Features:
Automatic Full Computer Wire Stripping Machine
Adopt the advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.

Apply for:
Widely used in the electronics industry, the city ahs, electrical appliances, motors, lamps, toys,
and other various products of wire processing.
Optimal stripped wire PVC /Teflon /silica gel line /. Glass fiber, etc.

Specification:
Available Wire Cross-Section Range:2.5-16mm2
Conduit Diameter:￠10mm
Cutting Length:1～100000mm
Cutting Tolerance: ±(0.002×L) (L=Cutting Length)
Stripping Length: Head 0~20mm, Tail 0~20mm
Middle Stripping Section: /
Speed: 1000-2000pcs/h
Display Way: English LCD
Drive Mode: 2 Drives
Blade Material: Hard tungsten steel
Bending: U-shaped, Z shapes, clockwise, counterclockwise,
Adjustable bending angle,30,45,60,90 degrees
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 650W
Measurement:390X350X255mm
Weight:33kg

FAQ:

1 Price terms

The price is based on EXW/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you the CFR price or CIF price for reference.

2. What is your main market?

There are kinds of different clients from Asia, Africa, America, and Europe market.

3 . Could provide a professional solution based on our product?

We always promote suitable solutions based on products and satisfy clients with cost-down requirements.

4 Can we provide the sample for testing?

Yes, It will be a pleasure if u provide us with the sample for testing.

5 Do u test all goods before delivery?

Yes,100% test before shipment.

™ products are tested and guaranteed to keep in good quality with one year warranty excluding consumable parts.
If any main parts have quality problems, we will provide new parts and send them to you to change at once with detailed technical support and video illustration, or our experience engineer help to solve them. All problems and questions can be responded to within 24 hours after receiving email/phone/other chatting tools.

What is the maximum wire size and production capacity of the WPM-09ZWJ machine?

The WPM-09ZWJ is designed for fully automatic processing of single-core cables ranging from 2.5mm² to 16mm². It can achieve a high output of up to 2000 pieces per hour, making it an ideal, high-efficiency solution for volume harness manufacturing and wire processing tasks.

What are the primary functions of this automatic wire processing machine?

This is a versatile, CNC-controlled machine that performs three core functions in one automated cycle: precision cutting to length, stripping insulation from both ends (acting as a jacket wire stripper), and forming precise bends. This integration eliminates multiple manual steps, streamlining production for cable assemblies and harnesses.

Is this machine suitable for a small workshop or only large-scale production?

While its high speed of 2000pcs/hour excels in large-scale harness manufacturing, the WPM-09ZWJ's CNC programmability and quick changeover also benefit smaller batches. Its automation improves consistency and reduces labor for workshops of any size looking to enhance quality and throughput in wire processing.

How does the CNC control benefit the wire stripping and bending process?

The CNC (Computer Numerical Control) system allows for precise digital programming of all parameters: cut length, strip length, and bend angle/position. This ensures repeatable, accurate results for every piece, minimizes material waste, and allows easy storage and recall of programs for different product runs, enhancing flexibility and setup speed.

What types of industries or applications is this machine best used for?

This automatic wire stripping, cutting, and bending machine is specifically engineered for the electrical and electronics manufacturing industries. It is perfect for producing wire harnesses, control panels, appliance wiring, automotive looms, and any application requiring processed single-core cables with consistent bends and stripped ends.
