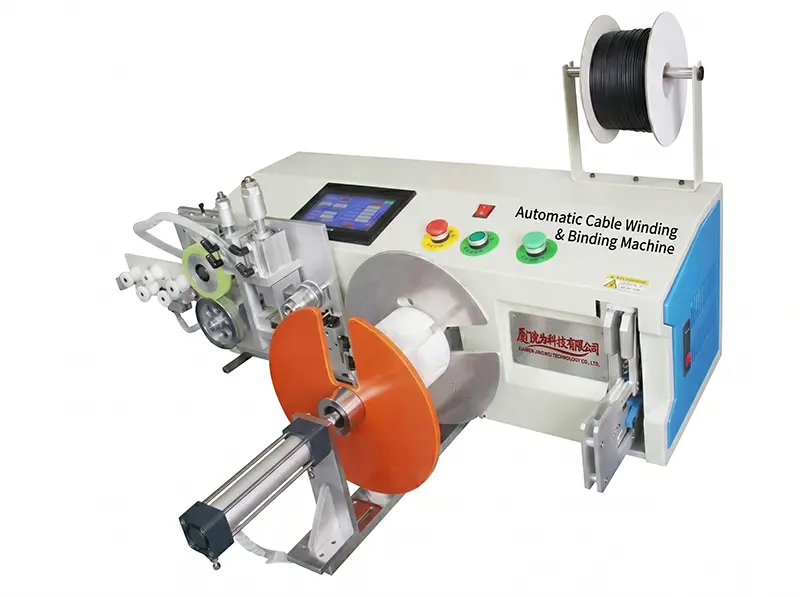

Automatic Cable Winding & Binding Machine 30m Max WPM-5-30

Automated Wire Winding Bunding Solution - Cable Cutting, Winding, and Binding Machine for Unmatched Efficiency

Introduction:

Introducing the ultimate solution for automated wire processing: the Cable Cutting Winding and binding Machine. This advanced system, a pinnacle of Wire Twisting Machine Manufacturing Equipment, is meticulously engineered to revolutionize your wire harness production line. Combining cutting-edge technology with robust performance, this Cable Twist Tie Machine delivers seamless Wire Cable Winding, And Bunding Machine operations, alongside integrated meter counting, splitting, and cutting. This comprehensive equipment streamlines the entire wire preparation process from raw wire to finished, bundled harnesses. Ideal for a diverse range of cables including AC/DC power cords, USB, HDMI, and video cables, this machine dramatically increases efficiency and reduces labor costs, making it an essential investment for modern wire harness manufacturing – and even adaptable for truss purposes in industries like racks and sanitary hoses. Experience the future of automated Wire Winding Bunding with this exceptional machine.

Description and Key Features for Streamlined Wire Harnessing:

This Cable Cutting Winding and binding Machine is specifically designed to optimize and automate your wire processing workflow, featuring:

• Integrated Wire Winding Bunding with Cutting & Metering: This machine goes beyond simple winding and bundling. It fully integrates Cable Cutting Winding with precise meter counting, wire splitting, and automated cutting functions. This all-in-one capability drastically reduces manual handling and ensures accurate, prepared wire lengths ready for harness assembly.
• Complete Wire Harness Preparation System: Functions as a comprehensive Wire Cable Winding, And Bunding Machine, encompassing all critical steps of wire preparation – measuring, cutting, winding, and binding – within a single automated unit. This eliminates the need for multiple machines and manual transfer steps, maximizing efficiency and minimizing potential for errors.
• Advanced Wire Twisting and Tying Mechanism: As a sophisticated piece of Wire Twisting Machine Manufacturing Equipment, this machine incorporates a highly reliable and efficient twisting and tying mechanism. The automated process creates secure and consistent bundles, crucial for the quality and durability of wire harnesses.
• Precision Control with PLC and Touch Screen: Driven by a powerful 4-motor system and intelligently controlled via PLC with touch-screen control, the machine offers unparalleled precision and customization. Set and adjust parameters for meter length, wire sending length, cut length, and twist configurations easily through the intuitive touch screen interface.
• Adaptable Winding and Tying Parameters: Enjoy complete flexibility with adjustable turns and winding speed. Tailor these settings to perfectly match the specific requirements of different wire types, cable diameters, and desired bundle tightness, ensuring optimal processing for every application.
• Broad Wire Compatibility for Diverse Applications: Designed to handle a wide spectrum of cable types: It applies to the AC power cord, DC power cord, USB cable, video cable, and HDMI high-definition cable. This versatility makes it suitable for manufacturing wire harnesses across various industries and product categories, offering a truly universal wire processing solution.
• Beyond Wire Harnessing: Adaptable for Truss Applications: The machine's robust tying capabilities extend its utility beyond wire harnesses. It can also be used for other use encapsulated iron truss purposes, such as racks, sanitary hoses, and other industries business. This adaptability makes it a smart investment for manufacturers with diverse product lines and bundling needs.

Specification Highlights for High-Performance Wire Processing:

• Machine Type: Cable Cutting Winding and Binding Machine / Wire Twisting Machine Manufacturing Equipment
• Key Functions: Wire Winding Bunding, Cable Cutting Winding and binding Machine, Wire Twisting Machine Manufacturing Equipment, Cable Twist Tie Machine, Wire Cable Winding, And Bunding Machine (Automated All-in-One Solution)
• Wire Diameter Range: 1 - 8 mm (Accommodates various wire gauges)
• Maximum Winding Length: 30 meters (Suitable for long harnesses and cables)
• Finished Product Inner Diameter: 50 - 200 mm (Adjustable coil inner diameter)
• Finished Product Outer Diameter: < 280 mm (Maximum coil outer diameter capacity)
• Tying Diameter: 18 - 45 mm (Adjustable binding range)
• Cable Tie Length: 120 - 190 mm (Customizable tie length)
• Winding Speed: 1 - 13 circles/s (High-speed winding)
• Typing Speed: 0.7 s/time (Fast tying cycle)
• Power Supply: 110, 220 V (50 - 60 Hz) (Global voltage compatibility)
• Power Consumption: 1500 W (Powerful and efficient)
• Weight: 80 kg (Stable and Durable Construction)
• Dimension (L * W * H): 830 mm * 300 mm * 550 mm (Optimized Benchtop Footprint)

Conclusion:

Upgrade your wire harness production with the Cable Cutting Winding and binding Machine – the premier Wire Cable Winding, And Bunding Machine and advanced Wire Twisting Machine Manufacturing Equipment available. This efficient and automated solution for Wire Winding Bunding and Cable Twist Tie Machine applications delivers unmatched precision, productivity, and versatility, maximizing your output and product quality. Contact us today to learn more about how this innovative machine can transform your wire harness manufacturing and elevate your operational capabilities!
