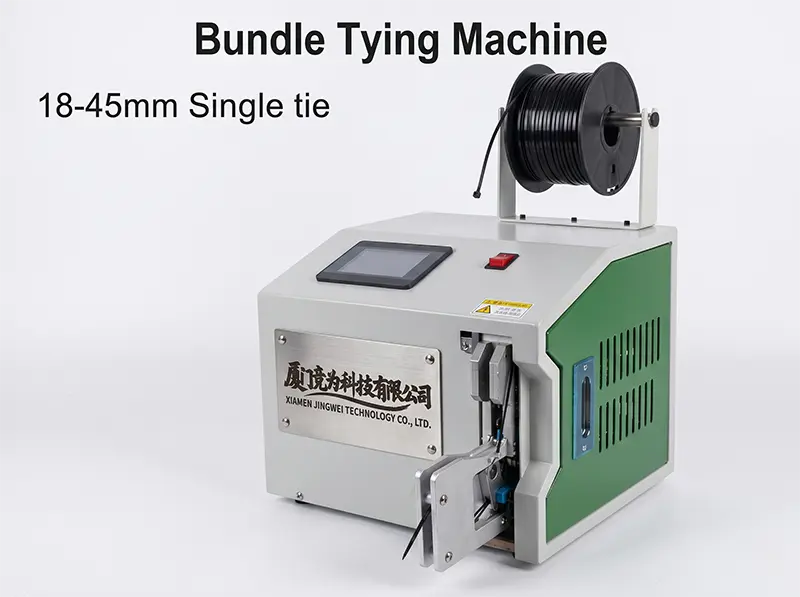

Automatic Touch Screen Bundle Tying Machine for 18-45mm Wires WPM-845C

Name: Automatic Touch Screen Bundle Tying Machine for 18-45mm W...
Brand: Automatic Cable Stripping Equipment
SKU: WPM-845C
Availability: InStock
Rating: 5 (1 reviews)

Twist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling Machine
Automatic Binding machine with touch screen WPM-845c
Equipment specifications and requirements
The machine is equipped with four motors (Motor and twisting wire motor for stepping motor), Adopt PLC program control for feeding cable tie, automatic cutting, and twist cable tie together. Winding motor for stepping motor by pedals control,
The machine applicable range: The machine applicable range:
Smaller machine: Available bind wire Diameter: 5MM-30MM
Smaller machine: Available bind wire Diameter: 8MM-30MM
Medium-sized machine: Available bind wire Diameter: 18MM-45MM
Large machine: Available bind wire Diameter: 40MM-80MM

Model	WPM-845A	WPM-845B	WPM-845C	WPM-845D
Voltage	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz	AC220/50Hz AC110/60Hz
Rated power	≤100W	≤100W	≤100W	≤100W
Dimensions	L350×W456×H315mm (Ribbon holder excluded)	L380×W420×H340mm (Ribbon holder excluded)	L380×W435×H340mm (Ribbon holder excluded)	L380×W435×H340mm (Ribbon holder excluded)
Weight	25KG	32KG	40KG	45KG
Tie length	65-130mm	75-140mm	120-190mm	200-300mm
Bundling diameter	5-30mm	8-30mm	18-45mm	40-80mm
Bundling speed	0.6s/time	0.6s/time	0.6s/time	0.6s/time
Ribbon	iron core plastic coating	iron core plastic coating	iron core plastic coating	iron core plastic coating
Input method	HMI touch screen	HMI touch screen	HMI touch screen	HMI touch screen

1.Input voltage: AC220V 50HZ/60HZ AC110V 60HZ
2.Power:<100W
3.Bundle wire speed:0.75 Sec/Time，66-75Time/Minute
6.Capacity:2200/hour ( wire twist and bundle)
Using environment
1. Ambient humidity≤85%RH
2.No violent shaking, Vibration, No corrosive air, No dusty

Twist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling Machine

What is the diameter range of wires or cables that the WPM-845C Automatic Touch Screen Bundle Tying Machine can handle?

The WPM-845C is designed to handle wire bundles or cable harnesses with a diameter range of 18mm to 45mm. This makes it suitable for a wide variety of industrial applications, from smaller control cables to larger power cable assemblies.

How does the touch screen control improve the operation of this automatic binding machine?

The integrated touch screen interface provides intuitive, user-friendly control over the machine's settings. Operators can easily adjust parameters like tie length, tension, and production speed, store programs for different bundle sizes, and monitor machine status, significantly reducing setup time and operator training while enhancing precision and repeatability.

What are the key benefits of using this automatic wire bundling machine in cable harness manufacturing?

The WPM-845C offers several key benefits for harness production: it ensures consistent, high-tensile-strength ties every cycle, dramatically increases output compared to manual tying, reduces labor costs and operator fatigue, and improves overall product quality and uniformity. Its PLC-controlled feeding, cutting, and twisting system guarantees reliable, industrial-grade performance.

Is the machine suitable for different types of ties, like twist ties or cable ties?

Based on the description highlighting a 'twisting' action, the WPM-845C is specifically engineered as a twist tie machine. It automates the process of applying and twisting a tie wire or band around a bundle. For standard plastic cable ties (zip ties), a different type of automatic tying machine would typically be required.

What makes this machine industrial-grade for cable harness equipment?

This bundle tying machine is built for demanding industrial environments. It features robust construction, PLC (Programmable Logic Controller) automation for reliable and precise operation, and is designed for continuous use in manufacturing settings. Its ability to handle a broad diameter range and integrate seamlessly into production lines makes it a durable and efficient piece of industrial cable harness equipment.
