WPM-YHT6 Automatic Multi-Core Wire Stripping and Cutting Machine

Product Overview

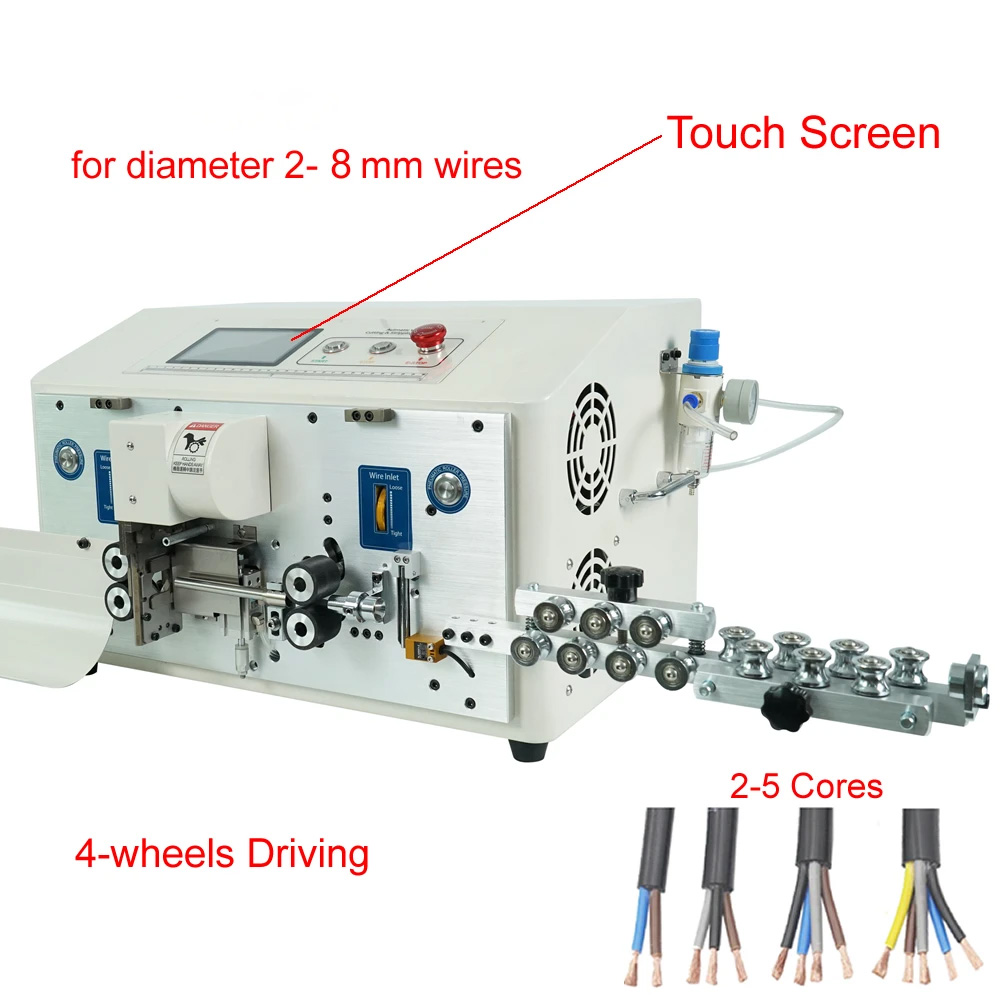

The WPM-YHT6 is a high-performance, fully automatic wire stripping and cutting machine specifically designed for processing double round sheath cables with 2, 3, 4, or 5 cores. This robust machine efficiently strips the outer sheath and inner cores of wires with an outer diameter ranging from 2mm to 8mm.

Featuring a user-friendly 5-inch touch screen interface with switchable Chinese and English languages, operation is intuitive and precise. The machine boasts a powerful 350W motor and supports both 110V and 220V power supplies at 50HZ/60HZ.

Technical Specifications

• Machine Dimension: 560mm × 460mm × 365mm
• Weight: 40KG
• Power: 350W
• Electrical Connection: 110V/220V 50HZ/60HZ
• Operation Interface: 5 inch (Chinese and English switching touch screen display)
• Applicable Wire Cross Section: ￠2-8mm (Round sheath wire)
• Number of Wire Cores: 2, 3, 4, and 5 cores
• Max Conduit Inside Diameter: ￠9mm
• Length Accuracy: ± 0.2mm
• Air Pressure: 0.8Mpa
• Wire Length Range: Max 100m
• Outer Wire Strip Length: Front end (1-150mm); Rear end (1-40mm)
• Inner Core Strip Length: Front end (0-20mm); Rear end (0-20mm)
• Blade Material: High-speed steel
• Transport Speed (for L=300mm): 1500-3000 pcs/hour
• Driving Mode: 4-wheels driving (silent hybrid stepper motor, 0.1mm forward per step)

Key Features & Benefits

• High Precision: Achieves a length accuracy of ±0.2mm for consistent, quality results.
• Efficient Performance: Processes up to 3000 pieces per hour with its powerful 4-wheel drive system.
• Versatile Processing: Handles 2-5 core round cables from 2mm to 8mm in diameter.
• User-Friendly: Intuitive 5-inch color touch screen simplifies setup and operation.
• Durable Construction: Built with high-speed steel blades for long-lasting, reliable performance in high-volume environments.
