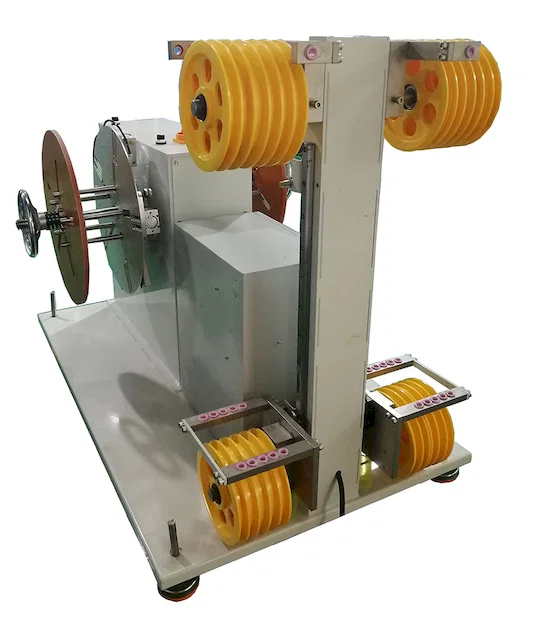

Large Double Tie Automatic Meter Cutting, Wire Stripping & Winding Machine WPM-CPRT-02TH
Model No: WPM-CPRT-02TH
Large circle double tie type automatic meter cutting wire stripping and winding machine, as well as automatic tying machines, wire/cable bundle tying machines, and wire tying machines are available.
Applicable wire diameter 2-5mm
Cutting length 3-40m
Cutting line length accuracy: ±2mm/m
Round tie appearance single/double tie strap, split end, and end, diagonal side
The inner diameter of the circle 300-400mm (adjustable)
Binding diameter ≤40mm
Desquamation mode complete desquamation at both ends
Head and tail peeling length 20-50mm (adjustable)
Head retention length 250-300mm (adjustable)
Tail length 300-400mm (random value within the interval)
Production efficiency: 180-300pcs /H (2-40m)
Applicable binding tape: Coated iron core ≤ 7.5kg/roll
Power supply: NATIONAL standard 220V/50Hz
Machine power: 4.5KW/H
Machine size: about 2500L*1100W*1850Hmm
Machine weight: about 1000KG- Inquiry now
