HDMI Cable Production Procedure

Discover the HDMI/USB 3.0 cable manufacturing process. Learn the steps from cable cutting and stripping to connector welding, soldering, and final molding with our equipment.

HDMI /USB 3.0/USB 3.1 cable manufacturing process and equipment

Process 1: Cut and strip the cable

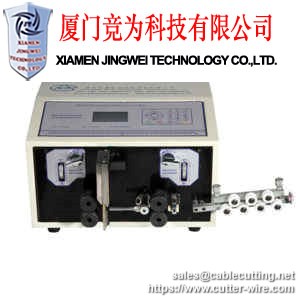

Automatic wire cutting and stripping machine

Process 2: Trim the Aluminum foil

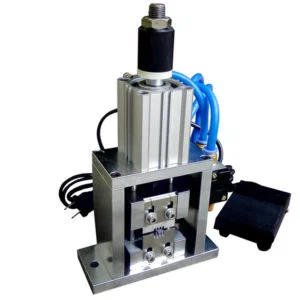

Vertical Aluminum foil trimming machine

Process 3: Position the inner wire on the plastic wire claw holder
Angle-type wire traverse machine

Process 4: Strip the inner wire

Stripping machine for two side

Process 5: Tin the inner wire

Process 6: Assemble the connector with wire

Process 7: welding the connector

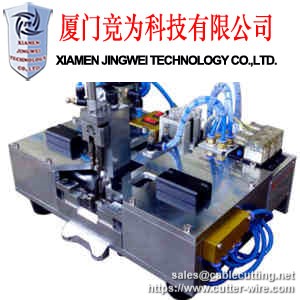

High-frequency welding machine

Process 8: mold the connector

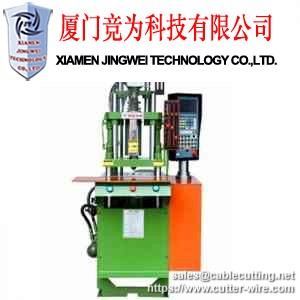

Injection molding machine
