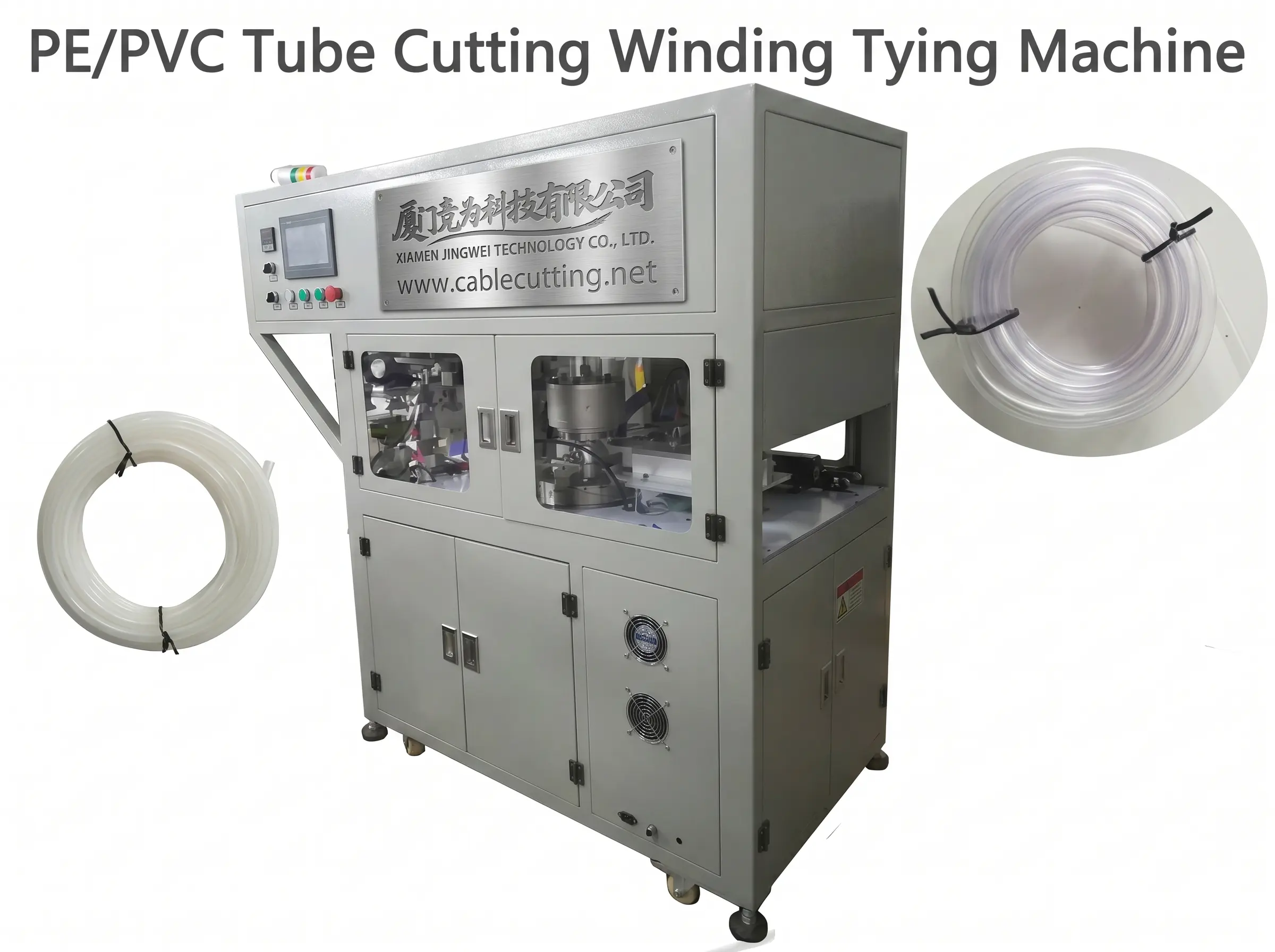

Automatic PE/PVC Tube Cutting Winding Tying Machine 02SL

Name: Automatic PE/PVC Tube Cutting Winding Tying Machine 02SL
Brand: Automatic Cable Stripping Equipment
SKU: 02SL
Availability: InStock
Rating: 5 (1 reviews)

High-Speed PE/PVC Flexible Tube Cutting Winding Tying Machine - Automate Your Tube Handling Process

Introduction:

Introducing the PE/PVC flexible tube cutting winding tying machine WPM-02SL, a fully automated, high-performance solution designed to revolutionize your flexible tube processing. This versatile Cutting Winding Tying Machine seamlessly integrates tube cutting, winding, and tying into one efficient operation, significantly boosting productivity. Also known as a cable winding binding machine, cutting winding and tying machine, Cable Bunching Machine, Cable Coiling Tying Machine, and Cable Cutting Winding Binding Machine, the WPM-02SL is engineered for precision and speed, making it the ideal choice for high-volume production of coiled and tied flexible tubing.

Key Features for Streamlined Tube Processing:

The PE/PVC flexible tube cutting winding tying machine WPM-02SL is equipped with features to maximize efficiency and ease of use:

Integrated Cutting, Winding, and Tying: This comprehensive Cutting Winding Tying Machine automates all three critical steps - cutting tubes to length, winding them into coils, and securely tying them - streamlining your entire process.
Versatile Material Compatibility: Designed to handle a wide range of flexible tubes, including PE and PVC, as well as various wire and cable types such as AC, DC, USB etc., providing broad application flexibility.
Adjustable Wire Diameter Range: Accommodates flexible tubes, wires, and cables with outer diameters ranging from 4 to 8 mm, suitable for a diverse range of product sizes.
Customizable Winding Parameters: Offers adjustable winding part distance (120-220 mm) and winding length (3-20 m), allowing for precise control over coil dimensions and meeting specific product requirements.
Variable Winding Speed Control: Features adjustable winding speed, optimizing the coiling process for different materials and desired coil tightness, ensuring consistent quality.
Large Tying Diameter Capacity: Capable of tying coils with an outer diameter up to ≤ 50 mm, accommodating a wide range of coil sizes for various applications.
High-Volume Productivity: Achieves a remarkable productivity rate of 250-380 pieces per hour (depending on winding length from 3-20m), significantly increasing your output and reducing production time.
Robust Circle Shaped Coils with Double Ties: Produces finished products in a neat circle shape with secure double ties, ensuring professional-looking and well-secured bundles.

Wide Applications Across Diverse Industries:

This Cable Cutting Winding Binding Machine is ideal for a wide range of industries using flexible tubing and cables, including:

Automotive Industry: Perfect for processing flexible tubing used in automotive fluid and pneumatic systems, as well as wiring harnesses.
Appliance Manufacturing: Ideal for preparing flexible tubing and wiring for household appliances, ensuring organized and reliable internal components.
Medical Device Manufacturing: Suitable for producing precisely coiled and tied flexible tubing used in medical devices, requiring consistent and high-quality processing.
Industrial Equipment Manufacturing: Adaptable to a variety of industrial applications requiring coiled and bound flexible tubing and wiring for machinery and equipment.
General Cable and Tubing Processing: Applicable across any industry requiring efficient cutting, coiling, and tying of PE, PVC, or similar flexible tubing and cables.

Technical Specifications for Demanding Operations:

Model: WPM-02SL
Machine Type: PE/PVC Flexible Tube Cutting Winding Tying Machine
Key Functions: Cutting Winding Tying Machine, cable winding binding machine, Cable Bunching Machine, Cable Coiling Tying Machine
Finished Product Shape: Circle shape, double tying
Suitable Tube/Wire/Cable Type: PE/PVC flexible tube, AC / DC / USB etc.
Wire Outer Diameter: 4 - 8 mm
Winding Part Distance: 120 - 220 mm
Winding Length: 3 - 20 m
Winding Speed: Adjustable
Tying Outer Diameter: ≤ 50 mm
Productivity: 250 - 380 pcs./h (winding length = 3 - 20 m)
Compressed air connection: 0.7 - 0.8 MPa
Power supply: 110, 220 V (50 - 60 Hz)
Power: 3.5 kW
Dimension: 1900 * 750 * 1900 mm
Weight: 500 kg

Conclusion:

Invest in the PE/PVC flexible tube cutting winding tying machine WPM-02SL to revolutionize your flexible tube processing workflow. This highly efficient Cable Cutting Winding Binding Machine and versatile Cable Coiling Tying Machine provides unmatched automation, speed, and precision, making it the ultimate Cutting Winding Tying Machine for maximizing your production efficiency and product quality. Contact us today to learn more about how the WPM-02SL can transform your tube and cable handling operations and elevate your manufacturing capabilities!

What types of tubes can the Automatic PE/PVC Tube Cutting Winding Tying Machine 02SL process?

The 02SL machine is designed to handle flexible plastic tubes, specifically PE (Polyethylene) and PVC (Polyvinyl Chloride) types, with diameters ranging from 4mm to 8mm. This makes it ideal for processing cable sleeving, spiral wrap, and other protective tubing commonly used in wire harness and cable assembly manufacturing.

What is the production output of this automated tube processing machine?

This fully automated machine delivers high productivity, producing between 250 to 380 finished coils per hour. This consistent output significantly boosts production capacity for cable harness manufacturing by automating the cutting, winding, and tying process, eliminating manual bottlenecks.

What are the main operational functions of this machine?

The Automatic PE/PVC Tube Cutting Winding Tying Machine 02SL performs three key functions in one seamless, automated cycle: 1) Cutting tubes to a preset length, 2) Winding the cut tube into a neat coil, and 3) Automatically tying the coil with a binding material to secure it. This integration streamlines the entire tube preparation process.

What are the primary benefits for a cable harness manufacturer using this machine?

Key benefits include dramatically increased productivity and consistency, reduced labor costs, and minimized material waste. By automating tube processing, it ensures uniform coil size and tightness, improves workplace safety by reducing manual handling, and provides a reliable, high-speed solution for preparing tubing for cable bunching and coiling applications.

Is the machine suitable for processing cables directly, or is it specifically for tubing?

This machine is specifically engineered for processing flexible plastic *tubing*, such as PE/PVC sleeving used to bundle and protect wire harnesses. It is a cable winding and binding machine in the sense that it prepares the conduit for cables. It is not designed to cut or coil electrical cables or wires themselves, but rather the protective tubes that organize them.
