Universal automatic silicone epoxy resin UV glue dispensing machine
Model No : WPM-221 WPM-331 WPM-441 WPM-551 WPM-4331 WPM-5331
Universal automatic silicone / epoxy resin / UV glue dispensing machine,Epoxy Resin Dispensing Machine, Glue Dispensing Automatic, Silicone Dispensing Machine
1. Can replace manual operation with high precision programming of dots, stripes, arcs, and patterns on different planes or curved surfaces.
2. Suitable for positioning of different jobs.
3. It supports graphics importing from computers, PLT files, TCF files, and G code files.
4. Suitable for glue: Anaerobic, Coatings, Cyanoacrylates, White Glues, Epoxy Resin, Greases, Sealants, Silicones, Solder/Braze Pastes, Thermal Grease, Conductive Adhesive, Red Gum, UV Glue, AB Glue, Polyurethane Resin Adhesive, etc.

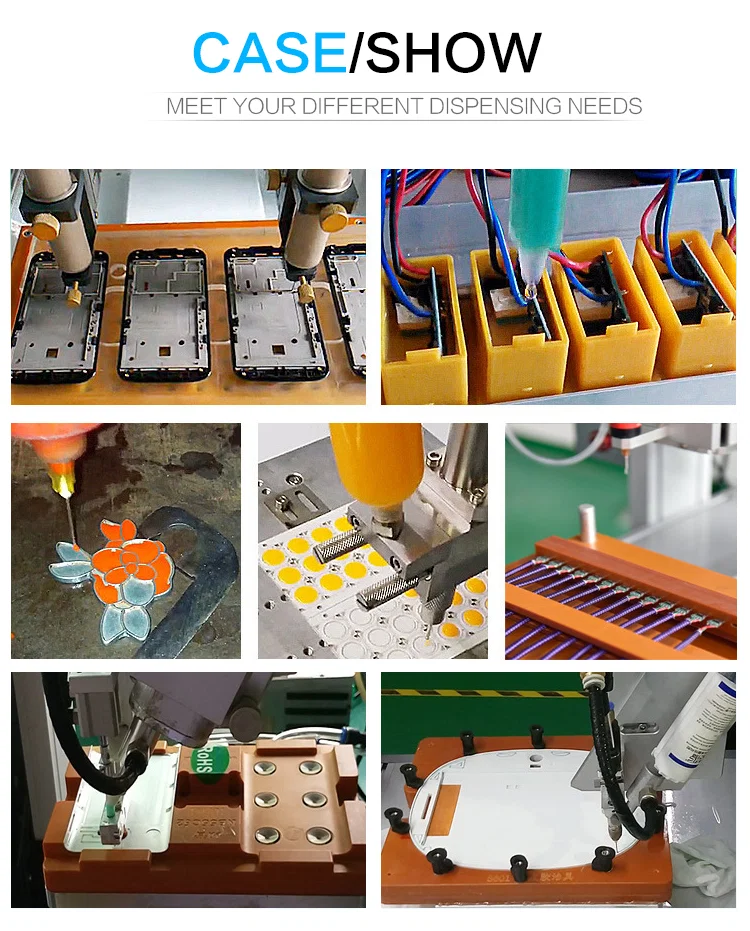

This equipment is suitable for high efficiency, high running precision, and the production process of dispensing. Generally suitable for products with sensors, relays, power adapters, electronic toys, sounders, electronic components, household
appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button products, battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts package coating, quantitative liquid filling, chip bonding, automotive mechanical parts coating, mechanical seals, etc.
Inquiry now

Detailed description Universal automatic silicone / epoxy resin / UV glue dispensing machine
Epoxy Resin Dispensing Machine, Glue Dispensing Automatic, Silicone Dispensing

一、Parameter:
Model		WPM-221	WPM-331	WPM-441	WPM-551	WPM-4331	WPM-5331
Number of controlled axes		Three-axis				Four-axis
Effective travel	X axis	200mm	300mm	400mm	500mm	400mm	500mm
	Y1 axis	200mm	300mm	400mm	500mm	300mm	300mm
	Y2 axis					300mm	300mm
	Z axis	50mm	100mm	100mm	100mm	100mm	100mm
Transmission mode	Double-track timing belt
Power source	Stepper motor
Top speed	500mm/sec
Repeat accuracy	±0.05mm
Maximum load	X/Y/Z 5kg/5kg/2kg
Control System	Hand-held three-axis control system
File storage space	400 sets of processing files, up to 9999 points in a single file.
Power	AC110-250V 50-60HZ 350W
Size	L	475mm	520mm	620mm	720mm	620mm	720mm
	W	410mm	585mm	685mm	785mm	585mm	585mm
	H	522.5mm	596.5mm	596.5mm	596.5mm	596.5mm	596.5mm
Weight		35kg	44kg	59kg	65kg	63kg	62kg

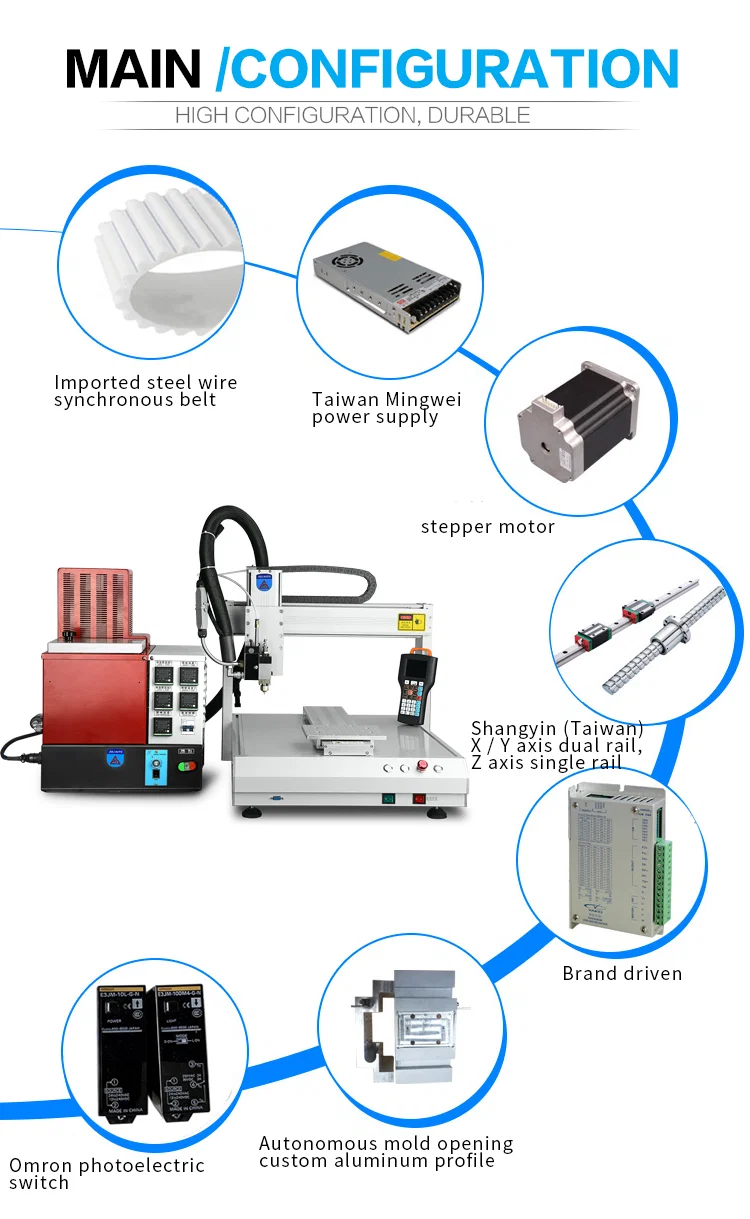

二、Main accessories：
1	motor			Stepper motor
2	Drive			YAKO (China)
3	Linear Guides			(Taiwan) X / Y axis dual rail, Z-axis single rail
4	Three-axis control system			(China)
5	Power supply			Ming Wei (China)

1. Can replace manual operation with high precision programming of dots, stripes, arcs, and patterns on different planes or curved surfaces.
2. Suitable for positioning of different jobs.
3. It supports graphics importing from computers, PLT files, TCF files, and G code files.
4. Suitable for glue: Anaerobic, Coatings, Cyanoacrylates, White Glues, Epoxy Resin, Greases, Sealants, Silicones, Solder/Braze Pastes, Thermal Grease, Conductive Adhesive, Red Gum, UV Glue, AB Glue, Polyurethane Resin Adhesive, etc.

This equipment is suitable for high efficiency, high running precision, and the production process of dispensing. Generally suitable for products with sensors, relays, power adapters, electronic toys, sounders, electronic components, household

appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button products, battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts package coating, quantitative liquid filling, chip bonding, automotive mechanical parts coating, mechanical seals, etc.
