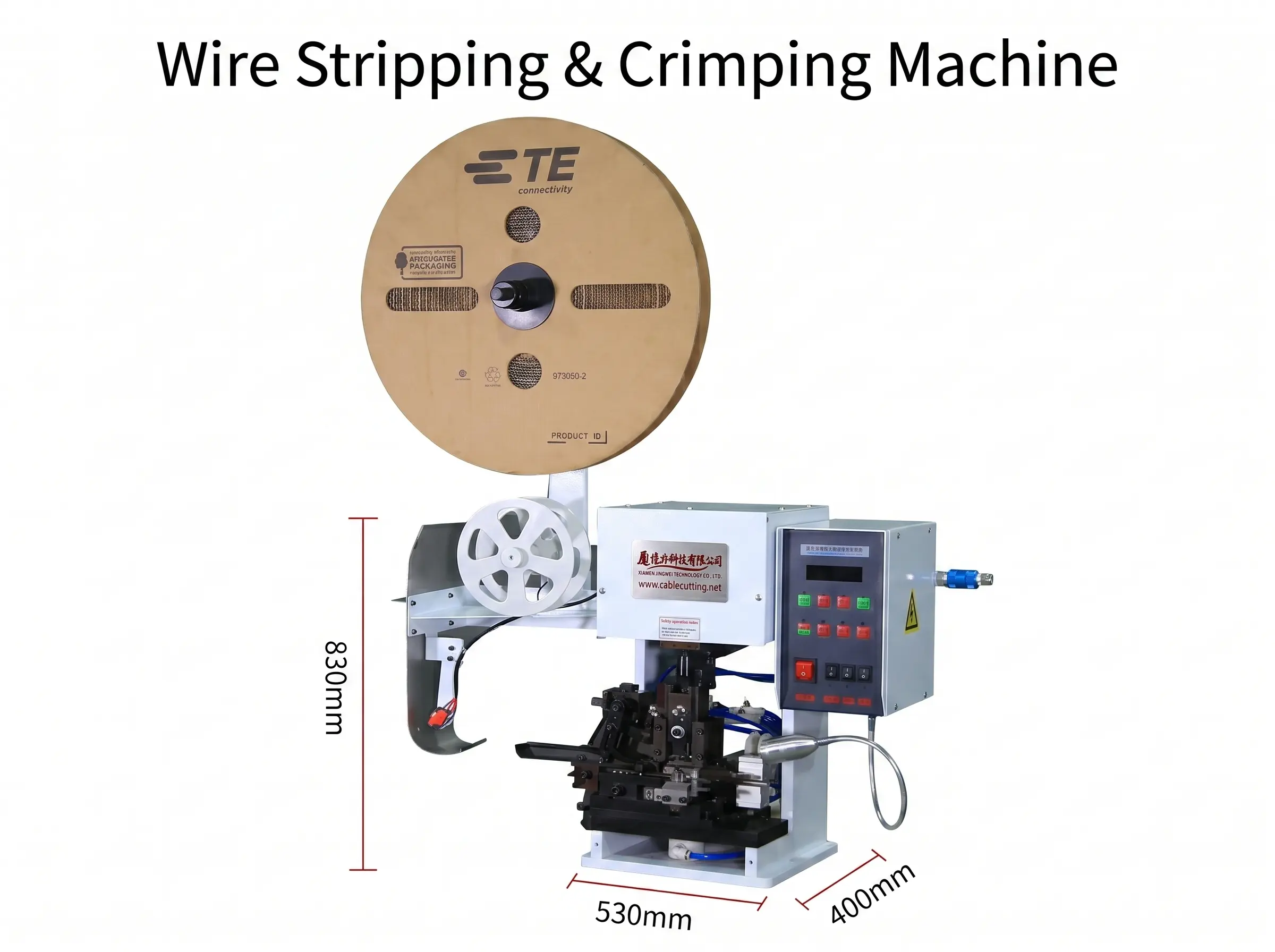

Wire stripping crimping machine WPM-2008A2
Wire stripping crimping machine WPM-2008A2
  • Wire stripping crimping machine WPM-2008A2

  • Model No : WPM-2008A2

  • Wire stripping crimping machine, Dc Terminal Crimping Machine, Ac Terminal Crimping Cable Stripping Machine, Automatic Crimp Strip Machine
    MEASUREMENT W410×L460×H420MM
    WEIGHT 85kg
    POWER SUPPLY AC220V
    COMPRESSED AIR 0.6mpa
    PRESSURE 2000kg
    STRIPPING LENGTH 1.0-7.0mm
    CAPACITY AWG#18-36#
    Feed way: Side feed
    PRODUCTION CAPACITY 5000-6000pcs/h

  • Inquiry now
Detailed description Dc Terminal Crimping Machine, Ac Terminal Crimping Cable Stripping Machine, Automatic Crimp Strip Machine. Wire stripping and crimping terminal machine (WPM-2008A2)
1. Wire stripping and Terminal Crimping can be done in a one-time cassette mold holder and skinning system combination to achieve a coherent motion machine.
2. High-precision parts assembly, adjustment method for the tuning screw, precision is more accurate.
3. This machine adopts Japanese SMC pneumatic components, a more stab-magnetic clutch, energy saving, and no noise.
4. Electic adopts high quality. It’s saving and steady.

MEASUREMENT    W410×L460×H420MM

Semi-Automatic stripping crimping machine, The multi-core sheathed cable stripping and ferrules crimping machine is specially designed for processing the core wires of multi-conductor sheathed cable and single wire, just change the crimping applicator for the different terminal.
1. Special for stripping and crimping the inner core of sheathed cable at one time.
2. Adopt advanced frequency conversion technology control, energy-saving, and environmental protection.
3. Stripping cylinder drive, High-speed, and accurate positioning.
4. The waste after stripping is vacuum suctioned, and the work area is clean and tidy.
5. The working speed can be adjusted through the operation panel to adapt to the operator’s proficiency.

Model

WPM-2008A2 1.5T

WPM-2008A2 2.0T

WPM-2008A2 3.0T

Available Wire Size

AWG32 - AWG20#

AWG32# - AWG20#

AWG24# - AWG16#

Stroke

30mm

40mm

50mm

Stripping Length

1.0-10mm

1-8mm

1-8mm

Length Tolerance

0.05-0.1mm

0.05-0.1mm

0.05-0.1mm

Crimp Force

1.5Ton

2.0Ton

3.0Ton

Power Supply

110/220VAC, 50/60Hz

110/220VAC, 50/60Hz

110/220VAC, 50/60Hz

Air Connection

0.3-0.6MPa

0.3-0.6MPa

0.3-0.6MPa

PRODUCTION CAPACITY    5000-6000pcs/h


Stripping and crimping effect

Wire stripping crimping machine, Dc Terminal Crimping Machine, Ac Terminal Crimping Cable Stripping Machine


Wire stripping crimping machine, Dc Terminal Crimping Machine, Ac Terminal Crimping Cable Stripping Machine


stripping crimping terminal machine, Wire Stripping Crimping Machine,Wire Crimp Machine

stripping crimping terminal machine, Wire Stripping Crimping Machine,Wire Crimp Machinestripping crimping terminal machine, Wire Stripping Crimping Machine,Wire Crimp Machinestripping crimping terminal machine, Wire Stripping Crimping Machine,Wire Crimp Machineapplications of stripping crimping terminal machine, Wire Stripping Crimping Machine,Wire Crimp Machineapplications of Wire stripping crimping machine, Dc Terminal Crimping Machine, Ac Terminal Crimping Cable Stripping Machine, Automatic Crimp Strip Machine, Wire stripping, and Terminal Crimping can be done in one time cassette mold holder and skinning system combination to achieve the coherent motion machine  Wire stripping crimping machine, Dc Terminal Crimping Machine, Ac Terminal Crimping Cable Stripping Machine, Automatic Crimp Strip Machine, Wire stripping, and Terminal Crimping can be done in one time cassette mold holder and skinning system combination to achieve the coherent motion machine  Wire stripping crimping machine, Dc Terminal Crimping Machine, Ac Terminal Crimping Cable Stripping Machine, Automatic Crimp Strip Machine, Wire stripping, and Terminal Crimping can be done in one time cassette mold holder and skinning system combination to achieve the coherent motion machine
