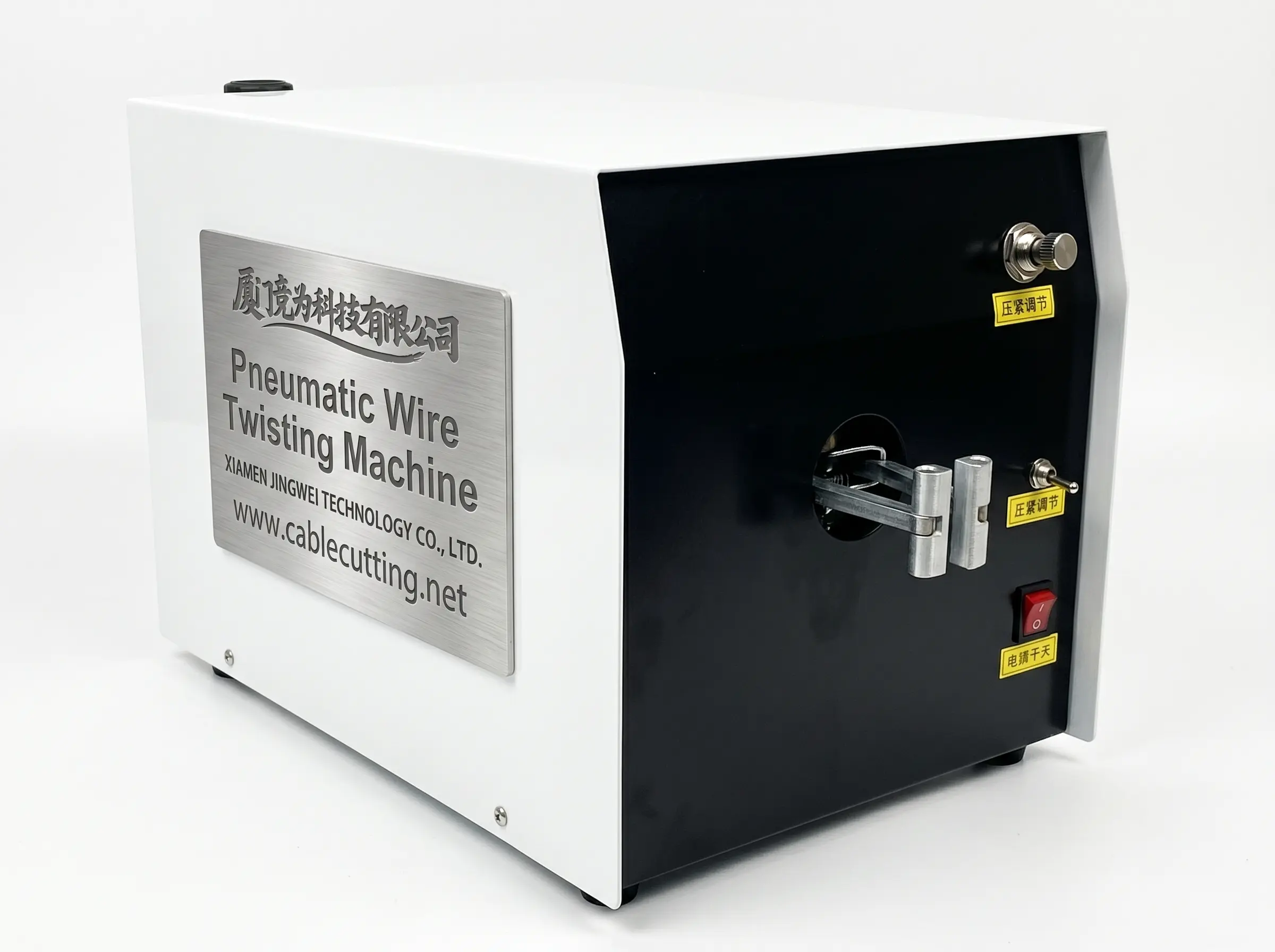

Automatic Pneumatic Wire Twisting Machine for Cable Harness WPM-19

Name: Automatic Pneumatic Wire Twisting Machine for Cable Harne...
Brand: Automatic Cable Stripping Equipment
SKU: WPM-19
Availability: InStock
Rating: 5 (1 reviews)

Automatic Pneumatic Wire Twisting Machine for Cable Harness WPM-19
All kinds of ground wires, braided wires, and isolation wires can be tightened, completely replacing manual work. The gripping hand adopts pneumatic control. When the air source is connected, the gripping hand will automatically open. When working, only need to hold the wire in, and lightly turn on the footswitch to complete the twisting operation.All types of ground wires, braided wires, and isolation wires can be easily tightened with this machine, eliminating the need for manual labor. The gripping hand is controlled by pneumatic power and will automatically open when connected to an air source. To operate, simply hold the wire in place and lightly press the footswitch to complete the twisting process.

1. The automatic gripper adopts an exposed design so that the scattered copper wires are also easily placed.
2. There is no need to adjust the elastic clamping wire when the wire diameter is different.
3. This model is an upgraded version of the gas-electric twisting machine.
4. The new automatic cable pulling device is added, and the training time for novices is short.
5. The opening size of the chuck can be adjusted. Loosen the chuck spindle screw inside the machine, move the entire chuck to the motor direction and then tighten the spindle screw to expand it, and vice versa.
6. The clamping force of the chuck can be increased to 5 to 6 springs by the spring force.

Automatic telescopic twisting machine
Air pressure 1.5-2.5kg/C㎡
Power AC 220V 50Hz 10W
Twisting speed 1400circle/s
Twisting length 5—80mm (150mm customizable)
Wire range 0.1-2(m㎡)
Dimension L340×W190×H170mm
Weight 12KG

What is the primary application of the JINGWEI Wire Twisting Machine WPM-19?

The JINGWEI WPM-19 is a professional wire termination machine designed for high-efficiency industrial cable harness manufacturing. Its primary application is the precise and consistent twisting of wire pairs or groups, creating secure terminations for electrical connections in automotive wiring, appliance harnesses, control panels, and other industrial assemblies requiring reliable, automated wire processing.

What are the key features that make the WPM-19 a high-quality wire processing solution?

The WPM-19 wire twister from JINGWEI is engineered for durability and precision. Key features include a robust mechanical construction for long-term industrial use, adjustable twisting parameters for various wire gauges and twist lengths, user-friendly controls for quick setup, and consistent performance that ensures uniform twist quality, reducing waste and improving production efficiency in your wire processing operations.

Is the JINGWEI WPM-19 suitable for different wire types and sizes?

Yes, the Wire Twisting Machine WPM-19 is designed with versatility in mind. It can process a range of common industrial wire types and sizes. For specific compatibility with your wire gauge (AWG/mm²), insulation material, and required twist pitch, we recommend contacting JINGWEI directly. Our technical team can provide detailed specifications and configuration guidance to ensure the machine meets your exact wire processing requirements.

Why should I choose JINGWEI as my wire twisting machine manufacturer?

Choosing JINGWEI means partnering with an experienced manufacturer specializing in industrial wire processing machinery. We combine proven engineering, reliable component sourcing, and stringent quality control to deliver efficient and durable machines like the WPM-19. Our commitment to precision manufacturing and customer support ensures you receive a high-performance solution backed by expert service, making us a trusted partner for businesses worldwide.

How can I get pricing or technical specifications for the WPM-19 wire twister?

To obtain detailed technical specifications, configuration options, and a competitive quote for the Wire Twisting Machine WPM-19, please inquire directly with JINGWEI. As a leading manufacturer, we provide comprehensive product information and tailored solutions. Contact our sales team to discuss your production volume, specific application needs, and to arrange a consultation or demonstration. We are ready to assist you in integrating this efficient wire processing machine into your operation.
